Working with a BSP

In this chapter...

• BSP Overview
• Using BSPs in the IDE
• Using BSPs on the command line
• Structure of BSPs on the command line
• Building a BSP OS image from source
• Supporting additional devices
• Transferring an OS image onto your board
• Testing Neutrino on your board
• Getting Photon on your board
• Where do I go from here?
• Filename conventions

BSP Overview

Once you've installed the QNX Software Development Platform, you can download processor-specific Board Support Packages (BSPs) from our website, http://www.qnx.com/. These BSPs are designed to help you get Neutrino running on certain platforms.

A BSP typically includes the following:

• IPL
• startup
• default buildfile
• networking support
• board-specific device drivers, system managers, utilities, etc.

The BSP is contained in an archive named after the industry-recognized name of the board and/or reference platform that the BSP supports. BSP packages are available for QNX Neutrino, Windows, or Linux hosts.

The BSP components are provided in source code form, unless there are restrictions on the source code, in which case the component is provided only in binary form. BSPs are provided in a zip archive. The same archive applies to all hosts.

To use a BSP, you must either unzip the archive and build it on the command line, or import it into the IDE.

Using BSPs in the IDE

Before working with a BSP in the IDE, you must first import it. When you import the BSP source, the IDE creates a System Builder project.

To import the BSP source code:

1. Select File-->Import.
2. Expand the QNX folder.
3. Select QNX Board Support Package from the list. Click Next.
4. In the Select the package to import dialog, click Select Package, and then choose the BSP archive using the file browser.
5. Choose the BSP you want. You'll see a description of it.
6. Click Next.
7. Uncheck the entries you don't want imported. (By default all the entries are selected.)
8. Click Next.
9. Select a working set. Default names are provided for the Working Set Name and the Project Name Prefix that you can override if you choose.
10. Click Finish. All the projects will be created and the source brought from the archive. You'll then be asked if you want to build all the projects you've imported.

    If you answer Yes, the IDE will start the build process. If you decide to build at a later time, you can do a Rebuild All from the main Project menu when you're ready to build.

    When you import a QNX BSP, the IDE opens the QNX BSP Perspective. This perspective combines the minimum elements from the C\C++ Development Perspective and the System Builder Perspective.

    ---

    For more information, see the IDE User's Guide in your documentation set. (Within the IDE itself, go to: Help-->Help Contents-->QNX Documentation Roadmap).

    ---

Using BSPs on the command line

If you aren't using the IDE and you want to manually install a BSP archive, we recommend that you create a default directory with the same name as your BSP and unzip the archive from there:

1. Change the directory to where you want to extract the BSP (e.g. /home/joe). The archive will extract to the current directory, so you should create a directory specifically for your BSP.

   For example:

   mkdir /home/joe/bspname

2. In the directory you've just created, extract the BSP:

   cd /home/joe/bspname
   unzip bspname.zip

Each BSP is rooted in whatever directory you copy it to. If you type make within this directory, you'll generate all of the buildable entities within that BSP no matter where you move the directory.

When you build a BSP, everything it needs, aside from standard system headers, is pulled in from within its own directory. Nothing that's built is installed outside of the BSP's directory. The makefiles shipped with the BSPs copy the contents of the prebuilt directory into the install directory. The binaries are built from the source using include files and link libraries in the install directory.

Structure of a BSP

After you unzip a BSP archive, the resulting directory structure looks something like this:

---

---

BSP directory structure.

In our documentation, we refer to the directory where you've installed a BSP (e.g. /home/myID/my_BSPs/integrator) as the bsp_working_dir. This directory includes the following subdirectories:

• src
• prebuilt
• install
• images

The images subdirectory is where the resultant boot images are placed. It contains (as a minimum) the Makefile needed to build the image(s). Other files that could reside in this directory include:

• custom buildfiles (for flash, etc.)
• EFS buildfiles
• IPL build scripts

prebuilt subdirectory

The prebuilt subdirectory contains prebuilt binaries, and header files that are shipped with the BSP.

Before the BSP is built, all of the files from the prebuilt directory are copied into the install directory, maintaining the path structure.

In order to handle dependencies, the libraries, headers, and other files found in the ./prebuilt directory need to be copied correctly to your ./install directory. To do this, you'll need to run make at the bsp_working_dir directory level.

The “root” of the prebuilt directory requires the same structure as the system root. The target-specific and usr directories mirror the structure of /.

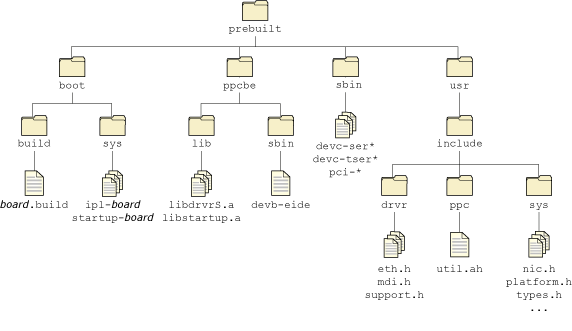

For example, the prebuilt directory might look like this:

---

---

A sample prebuilt directory.

install subdirectory

The install directory gets populated at the beginning of the BSP build process. All the files in the prebuilt directory are copied, then all generated binaries are installed here as they're compiled. The files stored in the install directory are taken first when mkifs executes.

Before you make any components for your particular board, you must first make the BSP sources at the top level:

cd bsp_working_dir
make

This builds everything under ./src and sets up the ./install and ./images subdirectories correctly.

After this initial build is complete, you can build any of the source files individually.

src subdirectory

The BSP-specific source code is stored in this directory. Refer to the BSP release notes to find the location of the source code for a specific driver.

The hardware directory contains separate directories for character, flash, and network drivers, IPL, startup code, and so on, depending on the BSP.

The lib directory contains separate directories for libraries that are required by driver and other utilities that are included with the BSP.

The utils directory contains separate directories for minor utilities that are required on the board. Some hardware-specific utilities can also be found in hardware/support.

The services directory contains separate directories for additional services that aren't included in the base installation.

Building source from the command line

In order to build a BSP from the command line, you must go to the root directory for the BSP.

Use the make command to build the source code. The Makefile defines the following targets:

all

Invokes the install, links, and images targets.

prebuilt

This recursively copies the prebuilt directory's contents to the install directory.

install

Invokes the prebuilt target, and then performs the following in the src directory:

• make hinstall to copy all public headers from src into the install directory.
• make install to build all binaries in src and copy the results into the install directory. This target also copies the buildfile from src/hardware/startup/boards/board/build and renames it board.build.

links

Creates a symbolic link (a copy on Windows) from install/cpu/boot/build/board.build to images/board.build.

images

Changes to the images directory and runs the Makefile there. This Makefile creates an IFS file based on the buildfile linked in during the make links target. Any extra work required (e.g. IPL padding, conversion to an alternate format) is also handled from within this Makefile.

If you don't specify a target, make invokes the all target.

Supporting additional devices

All boards have some devices, whether they're input, serial, flash, or PCI. Every BSP includes a buildfile that you can use to generate an OS image that will run on the board it was written for. The buildfile is in the bsp_working_dir/src/hardware/startup/boards/board directory.

A BSP's buildfile contains the commands — possibly commented out — for starting the drivers associated with the devices. You will need to edit the buildfile to modify or uncomment these commands. If you uncomment a command, make sure you uncomment the lines that add any required binaries to the image.

For more information, see the documentation for each BSP, as well as the buildfile itself; for general information about buildfiles, see the entry for mkifs in the Utilities Reference.

Once you've modified the buildfile, follow the instructions given earlier in this chapter for building an OS image.

Transferring an OS image onto your board

Once you've built an OS image, you'll need to transfer it to your board.

The IDE lets you communicate with your target and download your OS image using either a serial connection, or a network connection using the Trivial File Transfer Protocol (TFTP). If your board doesn't have a ROM monitor, you probably can't use the download services in the IDE; you'll have to get the image onto the board some other way (e.g. JTAG).

Transferring an OS image

There are several ways to transfer an OS image:

To:	Use the:
Load an image from your network (e.g. TFTP)	Network
Load an image serially (e.g. COM1, COM2)	ROM monitor
Burn both the IPL and the OS image into the flash boot ROM, then boot entirely from flash	IPL and OS
Burn an IPL (Initial Program Loader) into the flash boot ROM, then load the OS image serially	IPL and boot ROM
Generate a flash filesystem, and then place various files and utilities within it	Flash filesystem

The method you use to transfer an OS image depends on what comes with the board. The BSP contains information describing the method that you can use for each particular board. Each board will have all or some of these options for you to use.

To load an image serially:

1. Connect your target and host machine with a serial cable. Ensure that both machines properly recognize the connection.
2. Specify the device (e.g.COM1) and the communications settings (e.g. the baud rate, parity, data bits, stop bits, and flow control) to match your target machine's capabilities. You can now interact with your target by typing in the view.

To transfer a file using the Serial Terminal view:

1. Using either the serial terminal view or another method (outside the IDE), configure your target so that it's ready to receive an image.
2. In the serial terminal view, click Send File.
3. In the Select File to Send dialog, enter the name or your file (or click Browse).
4. Select a protocol (e.g. sendnto).
5. Click OK. The Builder transmits your file over the serial connection.

Working with a flash filesystem

The flash filesystem drivers implement a POSIX-like filesystem on NOR flash memory devices. The flash filesystem drivers are standalone executables that contain both the flash filesystem code and the flash device code. There are versions of the flash filesystem driver for different embedded systems hardware as well as PCMCIA memory cards.

The naming convention for the drivers is devf-system, where system describes the embedded system. For example, the devf-800fads driver is for the 800FADS PowerPC evaluation board.

To find out what flash devices we currently support, please refer to the following sources:

• the boards and mtd-flash directories under bsp_working_dir/src/hardware/flash
• QNX Neutrino OS docs (devf-* entries in Utilities Reference
• the QNX Software Systems website (www.qnx.com)

The flash filesystem drivers support one or more logical flash drives. Each logical drive is called a socket, which consists of a contiguous and homogeneous region of flash memory. For example, in a system containing two different types of flash device at different addresses, where one flash device is used for the boot image and the other for the flash filesystem, each flash device would appear in a different socket.

Each socket may be divided into one or more partitions. Two types of partitions are supported:

• raw partitions
• flash filesystem partitions

Raw partitions

A raw partition in the socket is any partition that doesn't contain a flash filesystem. The flash filesystem driver doesn't recognize any filesystem types other than the flash filesystem. A raw partition may contain an image filesystem or some application-specific data.

The flash filesystem uses a raw mountpoint to provide access to any partitions on the flash that aren't flash filesystem partitions. Note that the flash filesystem partitions are available as raw partitions as well.

Flash filesystem partitions

A flash filesystem partition contains the POSIX-like flash filesystem, which uses a QNX-proprietary format to store the filesystem data on the flash devices. This format isn't compatible with either the Microsoft FFS2 or PCMCIA FTL specification.

The flash filesystem allows files and directories to be freely created and deleted. It recovers space from deleted files using a reclaim mechanism similar to garbage collection.

The flash filesystem supports all the standard POSIX utilities such as ls, mkdir, rm, ln, mv, and cp. There are also some QNX Neutrino utilities for managing the flash filesystem:

flashctl

Erase, format, and mount flash partitions.

deflate

Compress files for flash filesystems.

mkefs

Create flash filesystem image files.

The flash filesystem supports all the standard POSIX I/O functions such as open(), close(), read(), and write(). Special functions such as erasing are supported using the devctl() function.

Flash filesystem source

Each BSP contains the binary and the source code for the appropriate flash filesystem driver, but the QNX Software Development Platform contains the associated header files and libraries.

Typing make in the bsp_working_dir generates the flash filesystem binary. Normally, you won't need to remake the flash filesystem driver unless you've changed the size or configuration of the flash on the board — this can include the number of parts, size of parts, type of parts, interleave, etc.

How do I create a partition?

Regardless of which BSP you're working with, the procedure requires that you:

1. Start the flash filesystem driver.
2. Erase the entire flash.
3. Format the partition.
4. Slay the flash filesystem driver.
5. Restart the flash filesystem driver.

1. To boot from DMON, enter the following command to start the flash filesystem driver:

   devf-generic -s0xe8000000,32M &

2. To boot from flash, enter the following command to start the flash system driver:

   devf-generic -s0x0,32M

   You should now see an fs0p0 entry under /dev.

3. To prepare the area for the partition, you must erase the entire flash. Enter the following command:

   flashctl -p/dev/fs0 -ev

4. To format the partition, enter the following command:

   flashctl -p/dev/fs0p0 -f

5. Now slay the flash filesystem driver:

   slay devf-generic

6. Finally, restart the driver:

   devf-generic &

You should now see the following entries:

Entry	Description
/dev/fs0p0	OS image (32 MB)
/dev/fs0p1	Flash filesystem partition (32 MB)

Testing Neutrino on your board

You can test Neutrino simply by executing any shell builtin command or any command residing within the OS image. For example, type:

ls

You'll see a directory listing, since the ls command has been provided in the default system image.

Getting Photon on your board

For instructions on adding the Photon microGUI to your embedded system, see the documentation for the particular BSP; the buildfile could include the specific commands (commented out) that you need to run. For even more details, see the “Photon in Embedded Systems” appendix in the Photon Programmer's Guide.

Where do I go from here?

Now that you have a better understanding of how BSPs work in an embedded system, you'll want to start working on your applications. The following table contains references to the QNX documentation that may help you find the information you'll need to get going.

For information on:	Go to:
Writing “hello world”	The section “A simple example” in the chapter Compiling and Debugging in the Neutrino Programmer's Guide, or the IDE User's Guide.
Debugging your programs	The section “Debugging” in the chapter Compiling and Debugging in the Neutrino Programmer's Guide.
Setting up NFS	The section “Complete example — TCP/IP with network filesystem” in the appendix Sample Buildfiles in this manual. See also the fs-nfs3 utility page in the Utilities Reference.
Setting up an Ethernet driver	The section “Complete example — TCP/IP with network filesystem” in the appendix Sample Buildfiles in this manual. See also the various network drivers (devn*, devnp-*) in the Utilities Reference.
Writing device drivers and/or resource managers	Writing a Resource Manager

If you need more information, see these chapters in this guide:

For more information on:	Go to:
Building flash filesystems	Customizing the Flash Filesystem
IPL	Writing an IPL program
Startup	Customizing Image Startup Programs

Filename conventions

In QNX Neutrino BSPs, we use the following conventions for naming files:

Part of filename	Description	Example
.bin	Suffix for binary format file	ifs-artesyn.bin
.build	Suffix for buildfile	sandpoint.build
efs-	Prefix for QNX Embedded Filesystem file; generated by mkefs	efs-sengine.srec
.elf	Suffix for ELF (Executable and Linking Format) file	ipl-ifs-mbx800.elf
ifs-	Prefix for QNX Image Filesystem file; generated by mkifs	ifs-800fads.elf
ipl-	Prefix for IPL (Initial Program Loader) file	ipl-eagle.srec
.openbios	Suffix for OpenBIOS format file	ifs-walnut.openbios
.prepboot	Suffix for Motorola PRePboot format file	ifs-prpmc800.prepboot
.srec	Suffix for S-record format file	ifs-malta.srec

---
